Here are a few photos showing some of the construction
details of the LOC Magnum. This rocket uses an PML CoPilot altimeter for dual deployment
(2 chutes). The first chute is deployed at apogee (highest point) by the altimeter. Then
at a pre-set altitude like 600', the main chute is deployed, again by the altimeter. Black
powder charges are used to eject the chutes.
|
|
The PML CoPilot had to be made to fit the
generic altimeter kit which consisted of a 54 mm coupler tube, G10 fiberglass board and
plywood bulkheads. Top side. |
Bottom side. Connectors at ends are Radio
Shack posts which are connected to the charges. |
|
|
The altimeter fits inside the 54 mm tube
which fits inside a body tube coupler which fits inside the body tube. |
Payload section view showing the altimeter
board installed and secured with a clamp. These post are the drogue chute charge feed. |
|
|
This is what a charge bag looks like after
firing. It is made from Saran wrap, an electric match and black powder. |
I retain all my RMS motors using this simple
scheme. |
|

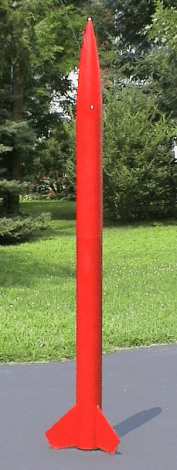

The Magnum
after its first flight. |
