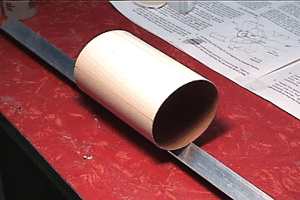

Angle aluminum makes it easy to draw straight lines on a curved surface.
|

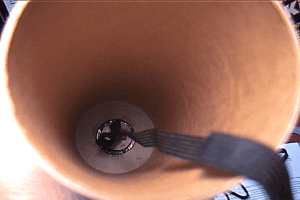

Looking down inside the body tube before the forward centering ring glue filet is added.
|
|
|
|
|
Fin can tube is cut into 4 quarters.
|
The 2 black lug launch lugs are added.
|
|
|
|
|

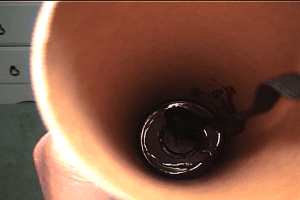

Inside the body tube after glue filet is added to forward centering ring.
|

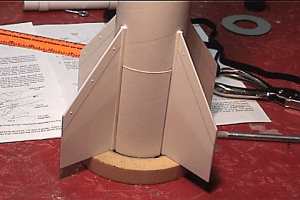

Fin cans added to each quadrant after being sanded to shape.
|
|
|
|
|

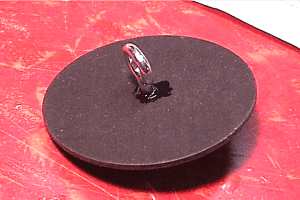

Eye screw is glued to payload bulk head.
|

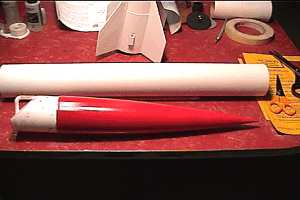

Meanwhile the nose cone is painted red and the payload section gets a coat of white.
|
|
|
|
|

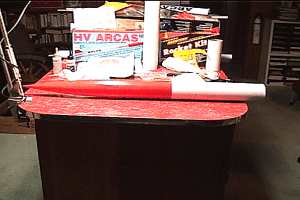

Next, the red part of the payload section is painted. Here, the painting of the payload and nosecone is completed.
|

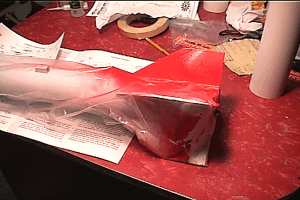

Masking off the main body tube using plastic bags so the number 4 fin can be painted red.
|
|
|
|
|

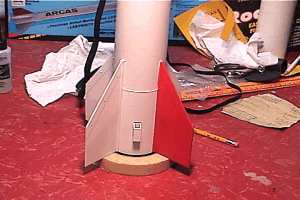

Main body tube painted white with one red fin per instructions.
|

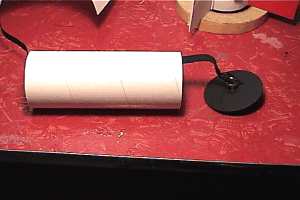

The coupler tube and bulk head being prepared.
|
|
|
|
|
Bulk head glued to coupler.
|
Coupler glued into payload section.
|
|
|
|
|

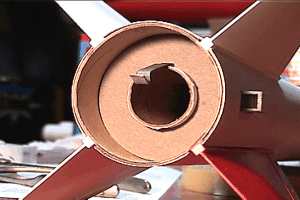

The aft centering ring inserted and ready to be glued.
|

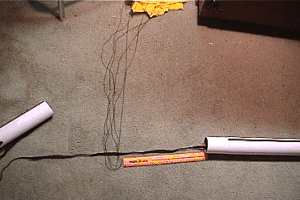

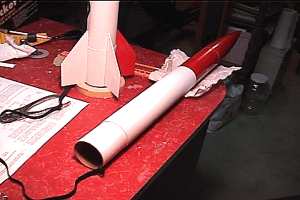

One foot from the payload section the parachute is attached.
|
|
|
|

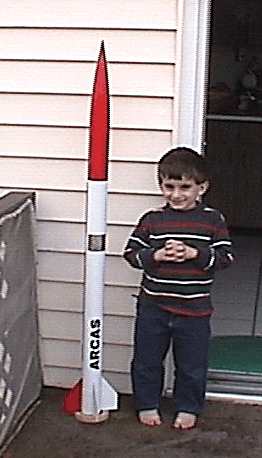

My "helper" standing next to the completed HV ARCAS.
|
