Working on my first RC helicopter kit, the Align Trex 450XL

Click here to see my Honey Bee 2 FP

Return to MY RC Plane page

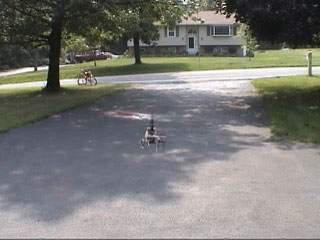

See first flights of my Trex 450!

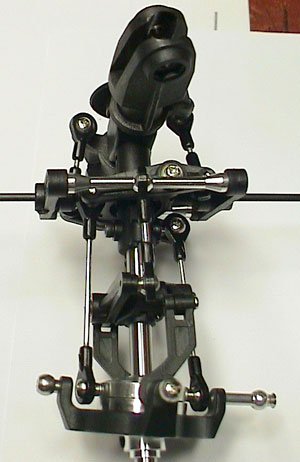

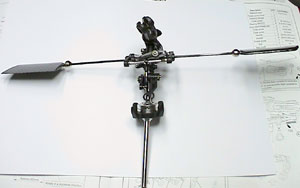

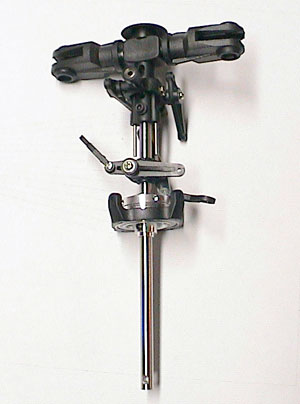

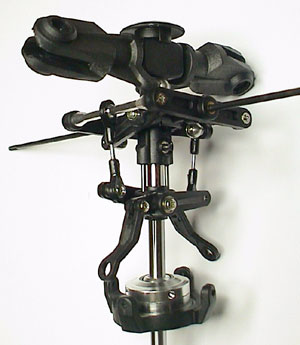

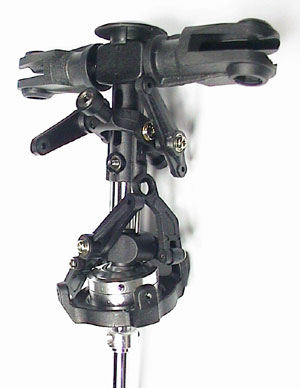

The Align Trex 450 XL HDE. The head comes partially assembled.

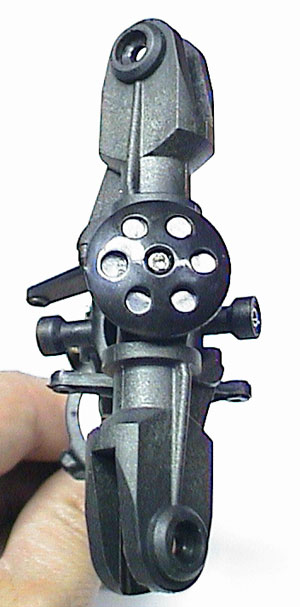

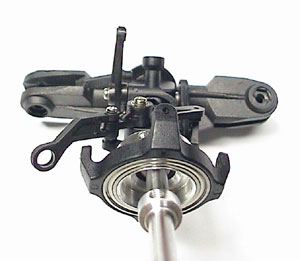

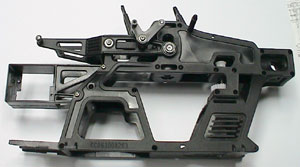

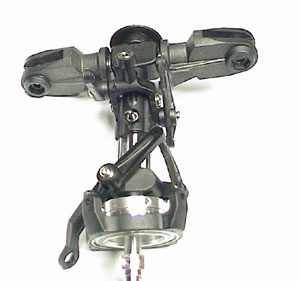

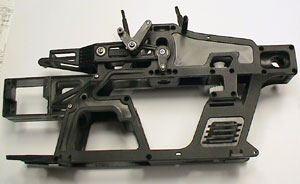

The head almost ready to go into the frame. The frame came pre-assembled.

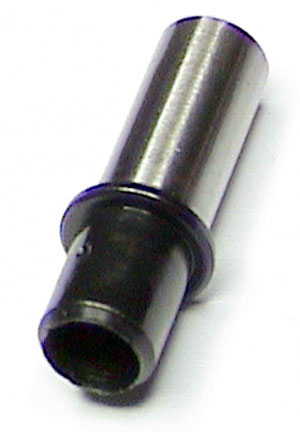

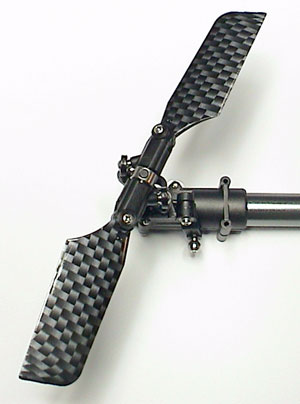

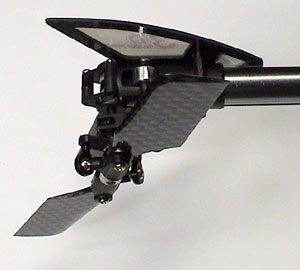

DEFECTIVE PART! This one way bearing sleeve is suppose to have a hole in it. Not only is the hole missing but the sleeve isn't even finished! Tail blades.

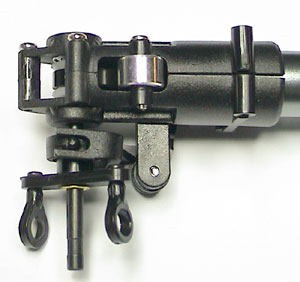

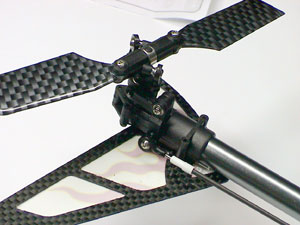

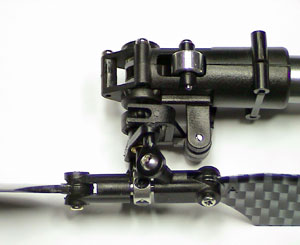

Tail gear box

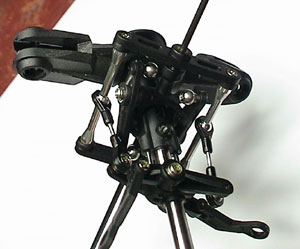

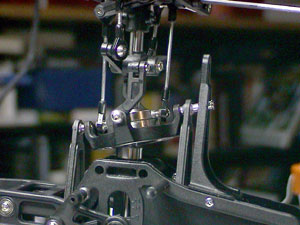

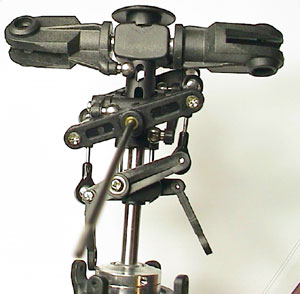

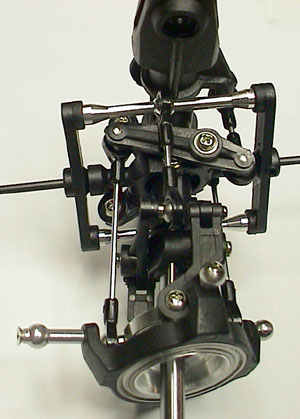

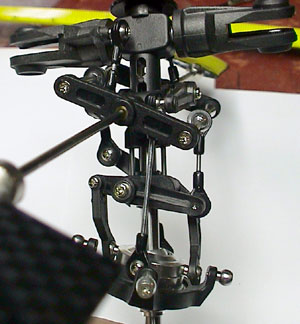

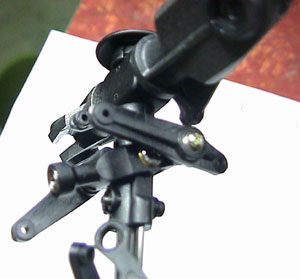

Connecting the link rods to the swash plate.

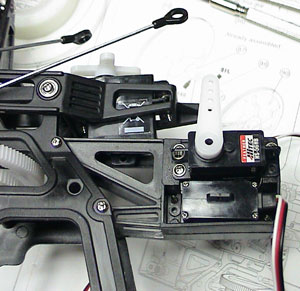

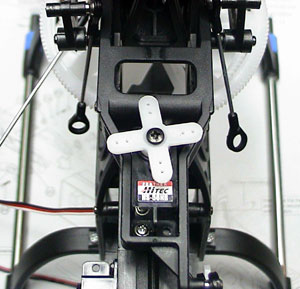

Installing the aileron servo. The pitch servo.

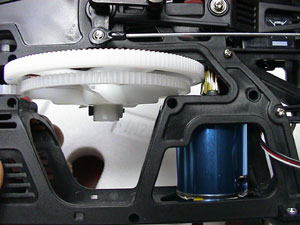

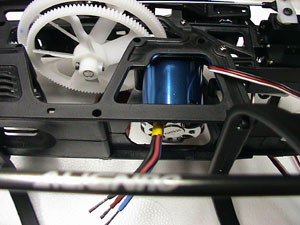

The elevator servo. An Align 430L motor installed and gear being installed.

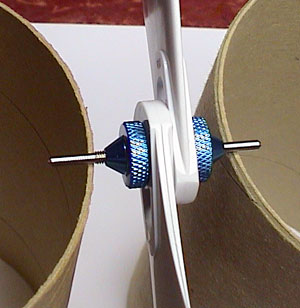

Gear/motor installed. Blade balancer.

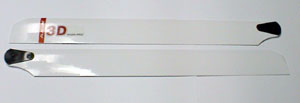

Kit comes with these 315 wooden blades. The "3D" logo isn't for looks, the tape is used to balance the blade. Rudder servo linked up to tail.

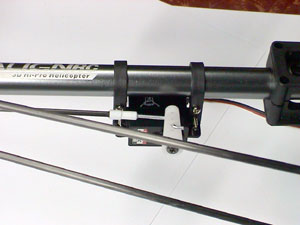

HS54 servo for the rudder. Battery tray.

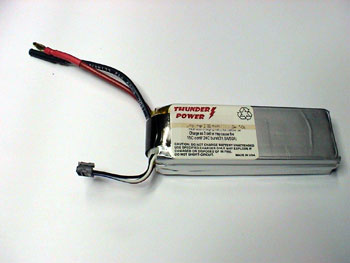

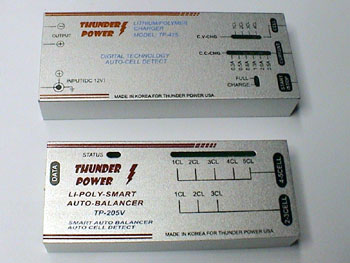

Thunder Power 2100 Lipo battery. Thunder Power charger and balancer.

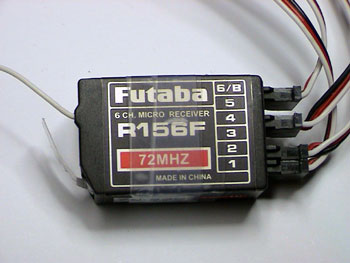

Gauge to measure pitch. Futaba R156F 6 channel receiver.

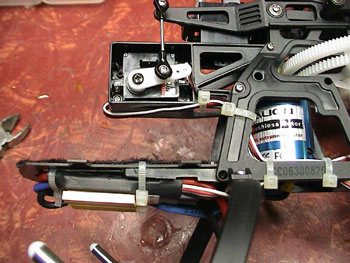

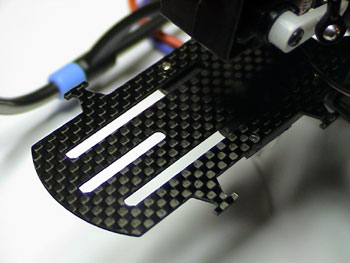

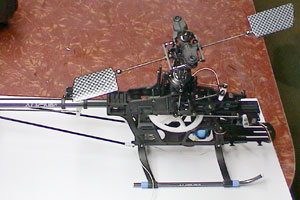

Side view showing the ESC mounting. Bottom view showing ESC mounting and wiring.

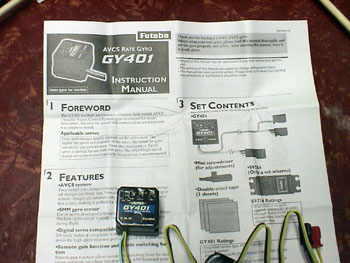

Instructions for the Futaba 401 gyro. The Align BL35 speed control.

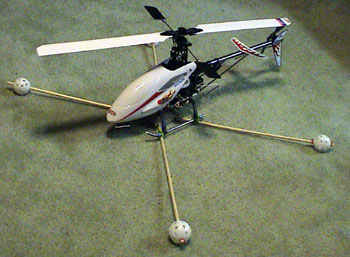

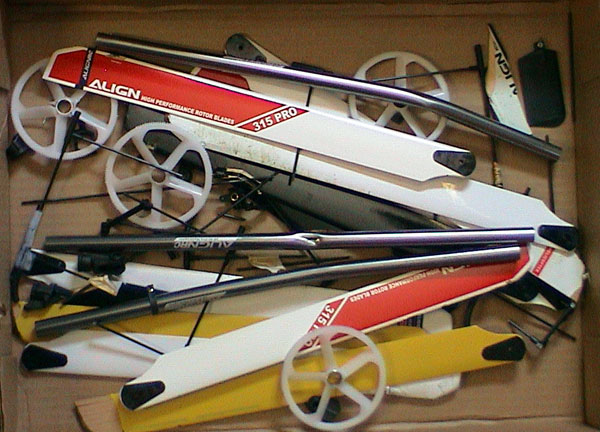

After a few crashes, you collect quite a few broken parts...
